| Make |
INVICTA ALS0738 |
| Model |
HIAFJ-5-P-150/70 |
| Year |
2020 |
| Maximum Fork Section |
160 mm x 75 mm |
| Pocket dimensions |
185 mm Inside to inside |
| Pocket dimensions |
515 mm outside to outside |
| Rated Capacity Pos – 1 |
5000 kgs @ 950 mm centres |
| Rated Capacity Pos – 2 |
3500 kgs @ 1200 mm centres |
| Rated Capacity Pos – 3 |
2750 kgs @ 1450 mm centres |
| Rated Capacity Pos – 4 |
2400 kgs @ 1700 mm centres |
| Rated Capacity Pos – 5 |
2000 kgs @ 1950 mm centres |
| Rated Capacity Pos – 6 |
1900 kgs @ 2200 mm centres |
| Rated Capacity Pos – 7 |
1800 kgs @ 2450 mm centres |
| Centre of Gravity |
840 mm / 1115 mm |
| Weight |
305 kgs |
| Descritption |

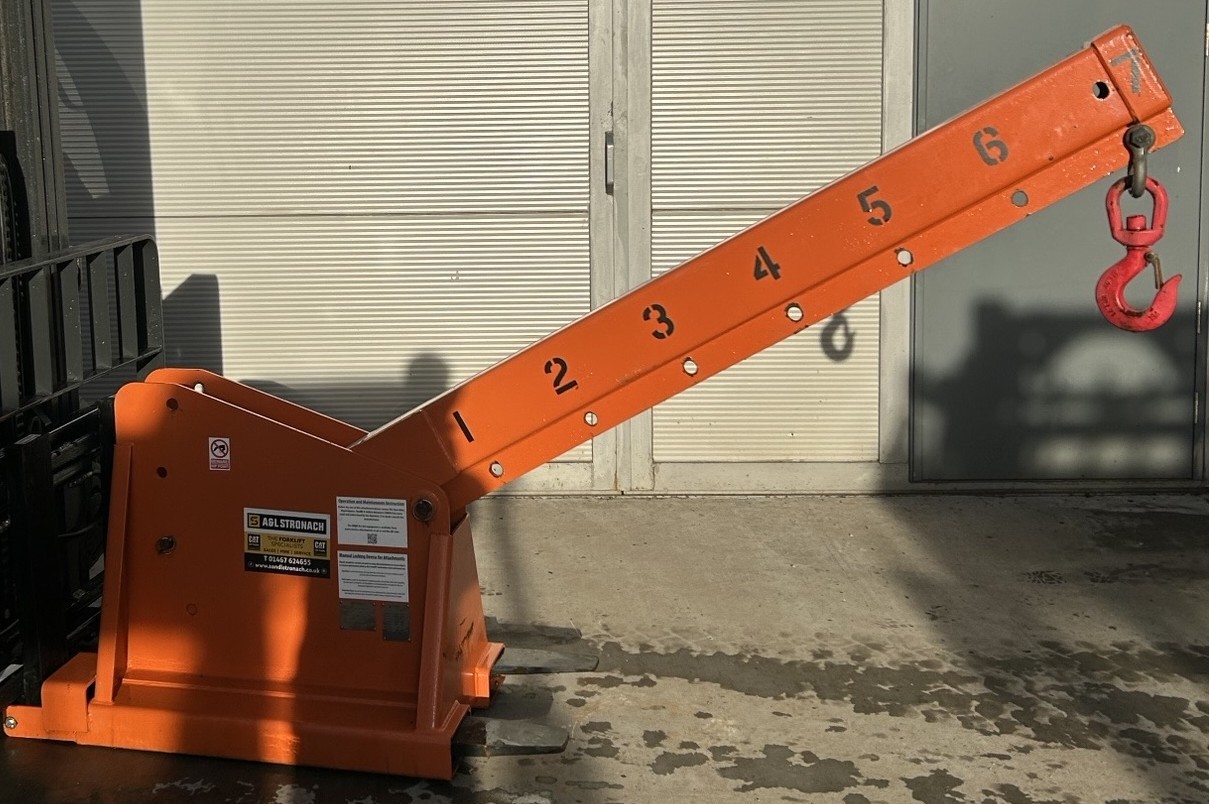

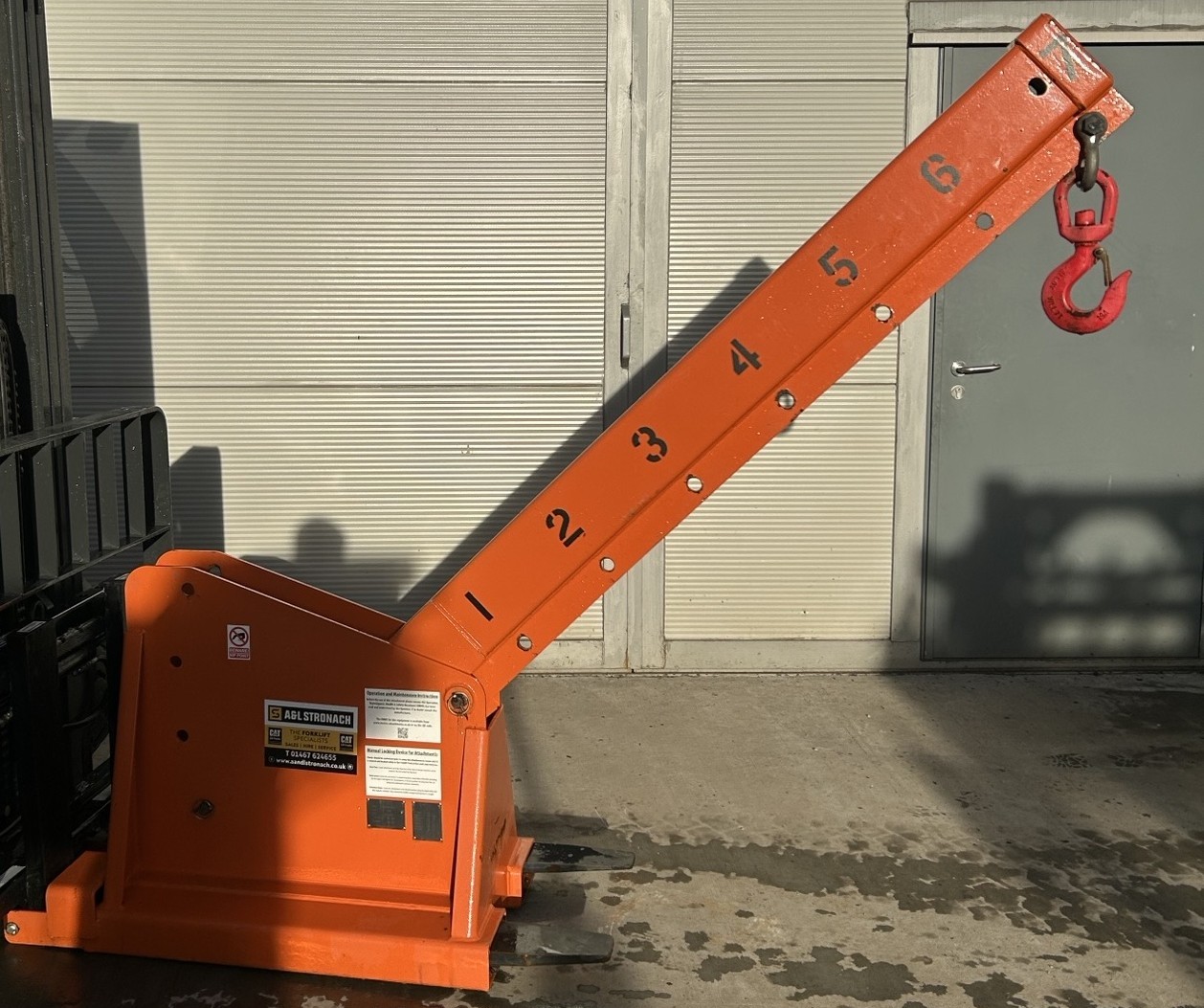

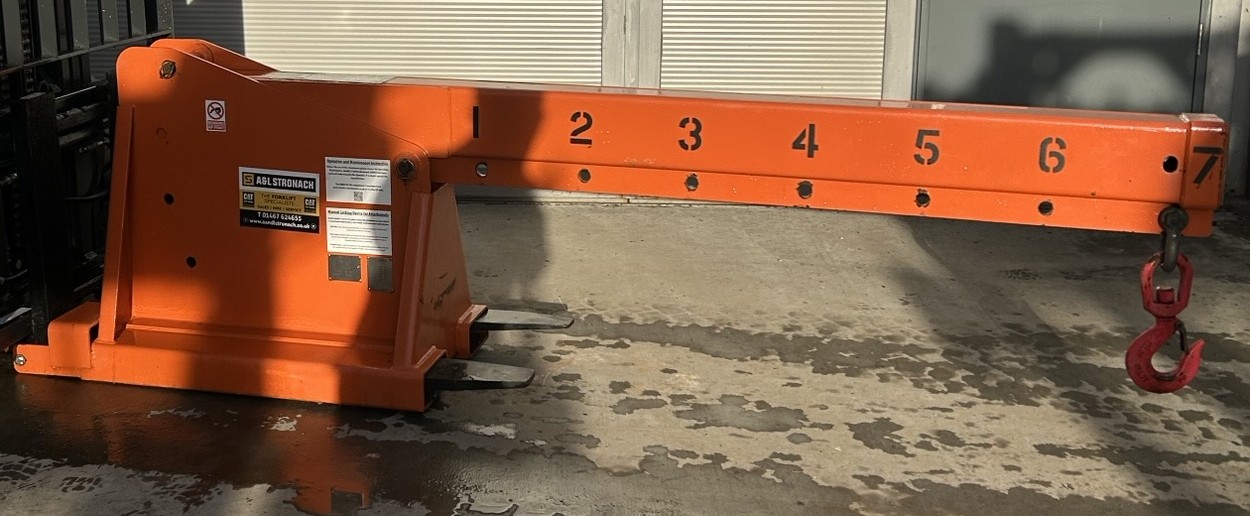

ADJUSTABLE ANGLE + LOAD CENTRE JIB |
